DR-24
Dual Rotary Drill

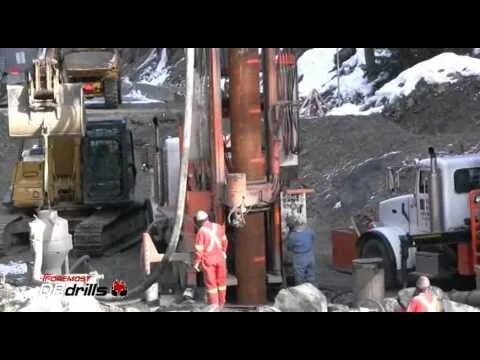

The DR-24 will set casing up to 24” (610 mm) in diameter. This model is commonly used for domestic and municipal wells, and construction applications such as foundation piling projects and holes for hydraulic elevator jacks. The DR-24 is available in PTO or deck engine configurations and can be mounted on a truck, trailer or self-propelled tracked carrier. Available in a stock tandem or tridem configuration.
FEATURES
Since acquiring the Dual Rotary technology from Barber Industries in 1993, Foremost has continually updated, refined and expanded the DR line with the goal of enhancing its functionality and extending its range of applications. Today, Foremost offers several DR models, each packed with features that deliver heightened safety, productivity, and profitability across a variety of drilling activities.
CYCLONE COLLECTOR
The optional cyclone sample collecting system slows discharge velocity to allow accurate and continuous sampling of the formation.
CASING JAWS
Rotation and feed forces are effectively transmitted from the lower drive to the casing via a set of three carbide inserts. Casing jaws are available for all common casing sizes and can be changed out quickly in the field.
DISCHARGE SWIVEL
All drill cuttings rise to the surface between the drill pipe and casing, and exit through the discharge swivel attached to the top of the casing. The discharge swivel directs cuttings to a safe dumping point or to an optional cyclone collection system.
TILTING TOP–DRIVE
The independent hydraulic top drive tilts for convenient loading of drill pipe and casing with the operator standing at ground level.
CASING SHOE
A carbide-studded casing shoe is welded to the casing bottom. The shoe I.D. is flush with the casing I.D. so that there is no reduction in the bore hole diameter when switching to open-hole drilling.
LOWER DRIVE
The lower rotary drive is also used as a powerful breakout and spinner for drill pipe, hammers, bits, and thread casing.
BENEFITS
Foremost Dual Rotary drills feature a unique lower rotary drive that is used to advance steel casing through unconsolidated overburden, such as sand, gravel, glacial till, and boulders. Pullback, pulldown, and rotational forces are effectively transmitted to the casing via high-strength steel jaws with carbide inserts.
An independent rotary top-drive simultaneously handles a drill string equipped with a down-the-hole hammer, drag bit, or roller cone bit. Cuttings are typically evacuated with air, but Foremost DR-drills can also be configured with pumps for mud or flooded reverse circulation drilling.
The top and lower drives feed independently, meaning that the bit position can vary relative to the bottom of the casing. Once the desired casing depth has been achieved, the DR continues drilling open-hole like a conventional top-drive drill. With a Foremost DR-drill, there is no need to trip out or change tools when transitioning to open-hole drilling.
10 REASONS TO OWN A DUAL ROTARY DRILL
Exceptional Overburden Performance
Foremost Dual Rotary Drills have been proven repeatedly in some of the toughest unconsolidated overburden formations, including sand, gravel, glacial till, and boulders.
Open-Hole Versatility
The DR can be configured for a variety of drilling methods including mud, reverse circulation, and flooded reverse circulation.
Straight Holes
The rotation of the casing by the lower drive results in a very straight hole making it ideal for shaft holes and foundation piles. This also minimises stress on casing and casing welds, and eases the task of installing screens and pumps in water well applications.
Basin Extraction
The lower drive is equally effective at pulling back casing; thereby simplifying the process of exposing a well screen or abandoning a well.
Utilises Conventional Tools
The drill string can be equipped with down-the-hole hammer, roller cone, or drag bit.
Control of Discharge
Cuttings are diverted through the discharge swivel and can be directed to a safe and convenient dumping or monitoring point.
Ease of Maintenance
Foremost DR rigs feature a directly connected hydraulic feed system which means no chains, sheaves, or sprockets to maintain. This type of feed system generates zero load on the mast crown, permitting a simple and lightweight mast design that does not sacrifice pullback capability.
Reduced Operational Risk
The DR’s flexibility allows you to expand into new applications and gives you confidence to go into areas previously considered off-limits. You will know you you have the right equipment to get the hole down the first time!
Resale Value
There is arguably no drill on the market today that holds its value better than a Foremost DR. Dual Rotary owners tend to hold onto their rigs, making used inventory scarce, making for easy re-sale should the need arise.
Foremost Technical Support
Foremost’s DR rigs are backed by the expertise and support of our product management team, field technicians, and one of the largest engineering departments in the industry.
