DISCOVERER MPD 1500
Tracked Exploration Drilling Rig
The leader in tracked off-road exploration drilling

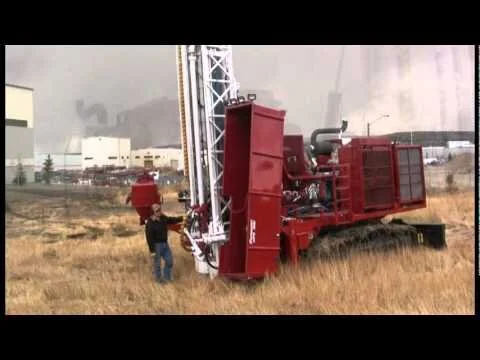

The Discoverer MPD 1500 offers the same drill components and specifications as the Explorer 1500 with the added benefit of a tracked undercarriage.
The MPD’s 1500 tracked configuration provides the ultimate in climbing ability on steep grades and side slopes. Like its terra-tired sibling, the MPD 1500 comes equipped with a hydraulic leveling deck and front dozer blade.
The optional sample cyclone enables safe monitoring of cuttings and collection of samples.
Common Drill SpecifIcations
Pulldown – 16,500 lbs (7,500 kg); 0 – 138 ft/min (0 – 42 m/min)
Pullback (hydraulic cylinder & cable) – 37,7000 lbs (17,100 kg); 0 – 90 ft/min (0 – 27 m/min)
top drive rotary torque (dual motors) rated at 5,000 lb ft (6,780 Nm) 0 – 120 rpm
Rated drilling depth – 1,500 ft (455 m) using 3 ¾” (95.25 mm) R/C pipe
Minimum horsepower rated at 475 hp (354 kW) – optional 630 hp (469 kW)
Rexroth piston pumps
Water injection system – 20 gpm (75.8 l/min)
Hydraulic breakout wrenches
Compressor – 900 cfm @ 350 PSI (25.5 m3/min @ 2,414 kPa)
0 – 45° angle drilling
Hydraulic tilt top drive
On-board pipe trough
